Product gallery

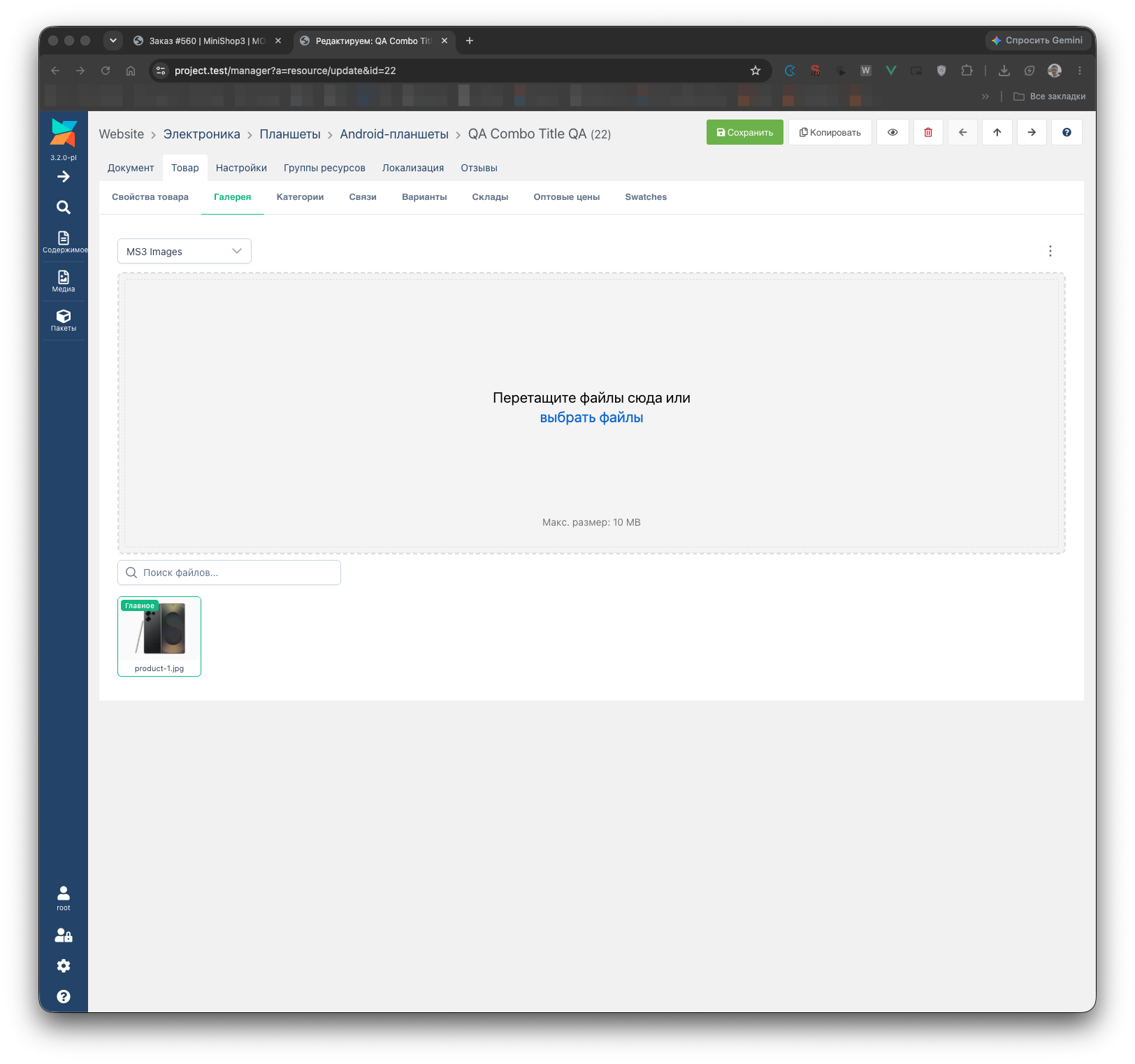

Product gallery tab

A tab on the product card: upload, thumbnails, sorting.

Image processing technology

MiniShop3 uses the Intervention Image v3 library instead of the obsolete phpThumb.

Requirements:

PHP 8.2+
Imagick (recommended) or the GD extension
For AVIF — Imagick built with libheif (the code only checks that the imagick extension is present)

Supported formats

Format	Read	Write	Note
JPEG	✅	✅	Primary format
PNG	✅	✅	With transparency
GIF	✅	✅	Animation (first frame only)
WebP	✅	✅	Roughly a quarter smaller than JPEG (approximate, depends on the content)
AVIF	✅	✅	Roughly half the size of JPEG (approximate); writing requires Imagick
HEIC	depends on the build	❌	Reading depends on Imagick with libheif — the code does not check it

Management interface

Image grid — drag-and-drop sort, search, and pagination
Context menu — right-click: edit, show, set as main, generate thumbnails, delete
Toolbar — Media Source selection, bulk delete and thumbnail regeneration
Edit dialog — file name, title (goes into alt on the frontend), description

Changing Media Source

Selecting a file source in the toolbar switches Media Source without saving the whole product form. Uses the Product\UpdateSource processor.

Main image (preview)

The “Set as main” action in the context menu does not change position in the gallery. It calls processor MiniShop3\Processors\Gallery\SetPreview, which writes preview_file_id to msProductData. Method ProductImageService::setProductPreview() links the file to the product card. Drag-and-drop sort and the preview on the frontend are separate mechanisms.

Image uploader

The uploader is built on the Uppy library.

Features:

Drag & Drop — drag files into the upload area
Multiple upload — several files at once
Preview — thumbnails before upload
Progress — upload progress display
Validation — file type and size checks

Uploader parameters

Parameter	Default	Description
`maxFileSize`	10 MB	Maximum file size
`allowedFileTypes`	JPEG, PNG, GIF, WebP, AVIF, HEIC	Allowed types

Upload has no width or height limits: only file type and size are checked. The Media Source properties maxUploadWidth / maxUploadHeight do not affect upload.

Image editor

Before upload you can edit the image:

Crop — select the desired area
Rotate — 90° in any direction
Flip — horizontal/vertical
Scale — resize

Thumbnail configuration

Where to configure

Thumbnail configuration is stored in Media Source:

Go to Media → File sources
Open the product source (default: MS3 Images)
Find the thumbnails property
Enter JSON configuration

Configuration format

json

{
  "small": {
    "width": 150,
    "height": 150,
    "quality": 85,
    "mode": "cover",
    "format": "webp"
  },
  "medium": {
    "width": 400,
    "height": 400,
    "quality": 88,
    "mode": "cover",
    "format": "webp"
  },
  "large": {
    "width": 800,
    "height": 800,
    "quality": 90,
    "mode": "max",
    "format": "jpg"
  }
}

Thumbnail parameters

Parameter	Type	Description
`width`	int	Width in pixels
`height`	int	Height in pixels
`quality`	int	Compression quality (0-100)
`mode`	string	Scaling mode
`format`	string	File format

Scaling modes (mode)

`mode`	Behavior	When to use
`cover`	Fills the area and crops the rest	One fixed size: product cards, grids, thumbnails
`contain`	Fits inside with proportions kept, via `scale()`. The code draws no background and ignores a `background` parameter	Show the whole object without cropping
`max`	Shrinks to the given size, never enlarges	Product gallery and zoom: keep the quality
`stretch`	Exactly `width`×`height`, proportions not kept (`resize()`)	A strict rectangle, distortion acceptable

Ready configurations

Basic (minimal)

For small shops with limited disk space.

json

{
  "thumb": {
    "width": 150,
    "height": 150,
    "quality": 80,
    "mode": "cover",
    "format": "webp"
  },
  "medium": {
    "width": 600,
    "height": 600,
    "quality": 85,
    "mode": "cover",
    "format": "webp"
  },
  "large": {
    "width": 1200,
    "height": 1200,
    "quality": 85,
    "mode": "max",
    "format": "jpg"
  }
}

Result (approximate): ~256 KB per image, 12-20 files per product — depends on the content and the settings.

Optimal (recommended)

Balance of quality and performance with support for all browsers.

json

{
  "thumb_webp": {
    "width": 150,
    "height": 150,
    "quality": 80,
    "mode": "cover",
    "format": "webp"
  },
  "thumb_jpg": {
    "width": 150,
    "height": 150,
    "quality": 85,
    "mode": "cover",
    "format": "jpg"
  },
  "card_webp": {
    "width": 300,
    "height": 300,
    "quality": 82,
    "mode": "cover",
    "format": "webp"
  },
  "card_jpg": {
    "width": 300,
    "height": 300,
    "quality": 85,
    "mode": "cover",
    "format": "jpg"
  },
  "gallery_webp": {
    "width": 800,
    "height": 800,
    "quality": 85,
    "mode": "max",
    "format": "webp"
  },
  "gallery_jpg": {
    "width": 800,
    "height": 800,
    "quality": 88,
    "mode": "max",
    "format": "jpg"
  },
  "zoom": {
    "width": 1500,
    "height": 1500,
    "quality": 90,
    "mode": "max",
    "format": "jpg"
  }
}

HTML with fallback:

html

<picture>
  <source srcset="[[+card_webp]]" type="image/webp">
  <img src="[[+card_jpg]]" alt="[[+pagetitle]]">
</picture>

Premium (with Retina)

Maximum quality for large stores.

json

{
  "card_webp": {
    "width": 350,
    "height": 350,
    "quality": 82,
    "mode": "cover",
    "format": "webp"
  },
  "card_webp_2x": {
    "width": 700,
    "height": 700,
    "quality": 78,
    "mode": "cover",
    "format": "webp"
  },
  "card_jpg": {
    "width": 350,
    "height": 350,
    "quality": 85,
    "mode": "cover",
    "format": "jpg"
  }
}

HTML with Retina:

html

<picture>
  <source
    srcset="[[+card_webp]] 1x, [[+card_webp_2x]] 2x"
    type="image/webp">
  <img src="[[+card_jpg]]" alt="[[+pagetitle]]">
</picture>

Watermarks

json

{
  "watermarked": {
    "width": 800,
    "height": 600,
    "quality": 85,
    "mode": "cover",
    "format": "jpg",
    "watermark": {
      "enabled": true,
      "path": "assets/watermark.png",
      "position": "bottom-right",
      "offset_x": 10,
      "offset_y": 10,
      "opacity": 50
    }
  }
}

Key	Description
`enabled`	Turns the watermark on. If the watermark is on and `path` is empty, the thumbnail is built without it and the reason goes to the log
`path`	A path from the site root, with or without a leading slash. A file outside the site root, or an unreadable one, is rejected and logged
`position`	Intervention names: `top-left`, `top`, `top-right`, `left`, `center`, `right`, `bottom-left`, `bottom`, `bottom-right`, plus `tile` — the watermark fills the whole frame. Case and spaces do not matter, an empty value gives `bottom-right`
`offset_x`, `offset_y`	Margins from the edge in pixels. With `tile` they are the gaps between tiles
`opacity`	0–100: the value is cast to an integer, anything outside the range is clamped; empty or `null` gives 100. Works on both GD and Imagick, including transparent PNG and WebP

phpThumb and miniShop2 codes (BR, C, * and the like) are not supported: an unknown value leaves the image without a watermark and logs Unknown watermark position.

Text watermark

The watermark can be text instead of an image — the type: text key:

json

{
  "watermark": {
    "enabled": true,
    "type": "text",
    "text": "© My store",
    "font": "assets/fonts/roboto.ttf",
    "size": 24,
    "color": "#ffffff",
    "angle": 0,
    "position": "bottom-right",
    "opacity": 60
  }
}

font is required — a path to a TTF file from the site root. With no font or no text the watermark is skipped and the reason goes to the log. The position, offset_x, offset_y and opacity keys work as they do for an image, but tile is not available for text.

Quality recommendations

Image type	WebP	JPEG	Comment
Thumbnails (≤200px)	75-80%	85%	Artifacts not visible
Cards (200-400px)	80-85%	85-88%	Optimal balance
Gallery (400-1000px)	85%	88-90%	Details matter
Zoom (>1000px)	—	90-92%	Maximum quality

Rule

Roughly speaking, WebP can use 3-5% lower quality than JPEG for the same visual result (a measurement, not a guarantee from the component).

File structure

text

assets/images/products/
└── {product_id}/
    ├── photo.jpg           # Original
    ├── thumb_webp/
    │   └── photo.webp      # WebP thumbnail
    ├── thumb_jpg/
    │   └── photo.jpg       # JPEG thumbnail
    ├── card_webp/
    │   └── photo.webp
    ├── card_jpg/
    │   └── photo.jpg
    └── ...

Developer API

Service ms3_image:

php

// Get the service
$imageService = $modx->services->get('ms3_image');

// Generate thumbnail
$thumbnailData = $imageService->makeThumbnail($sourceInfo, [
    'width' => 300,
    'height' => 200,
    'quality' => 85,
    'mode' => 'cover',
    'format' => 'webp'
]);

// Save to Media Source
$path = $imageService->saveThumbnailToSource(
    $thumbnailData,
    'products/123/',
    'photo_thumb.webp',
    $mediaSource
);

// Driver info
$driverInfo = $imageService->getDriverInfo();
// ['name' => 'Imagick'|'GD', 'supports_webp' => true, 'supports_avif' => true|false]

Troubleshooting

Thumbnails not created

Check:

Imagick or GD: php -m | grep -E "(imagick|gd)"
Write permissions for assets/images/products/
Valid JSON in Media Source settings
MODX logs in core/cache/logs/error.log

WebP not generated

Requirements:

Imagick with WebP support, or GD compiled with --enable-webp

Check:

php

$imageService = $modx->services->get('ms3_image');
$info = $imageService->getDriverInfo();
var_dump($info['supports_webp']);

AVIF not generated

AVIF requires Imagick with libheif. GD does not support AVIF.

Check:

bash

php -r "var_dump(Imagick::queryFormats('AVIF'));"

Images upload but don't display

Check:

Media Source URL in settings
File accessibility at the given path
.htaccess for static files

Utilities: Gallery — bulk thumbnail regeneration
msGallery — gallery output snippet on the site
