Manager guide ​

The Product sets page is for set templates (a fixed list of recommended products + a type) and bulk application of those templates to categories. Per-product overrides use TVs — see TVs on the product card.

For UI zones and template types, see Product sets (interface).

Manager section ​

  • Menu: Components → Product sets
  • Controller: namespace=ms3productsets, action=index
  • VueTools is required (without it the page will not load).

Screenshot placeholder — file images/admin-menu.png: manager menu Components → Product sets.
Filenames and subjects: images/README.md.

Page layout ​

Typically you will see:

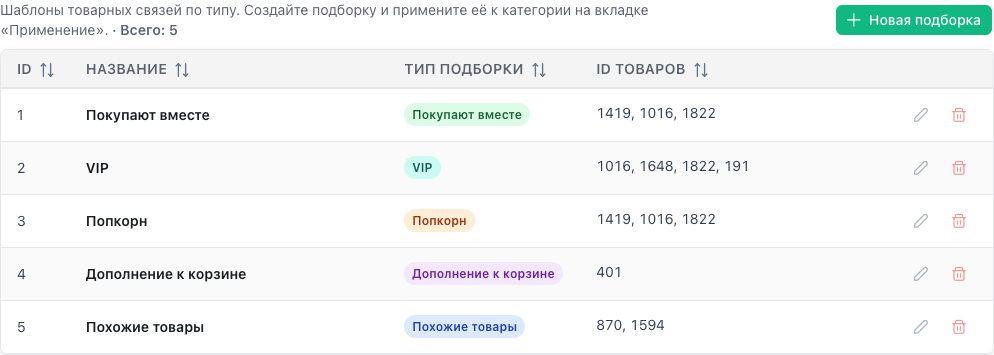

  1. Template list — table of existing templates (ID, name, type, related products).
  2. Create/edit form — template fields (name, type, related_product_ids, description, sortorder).
  3. Apply to category — pick template, category tree, replace option, apply action.
  4. Optionally unbind template from a category.

Screenshot placeholder — images/admin-page-overview.png: full page (list + form / tree panel).

Screenshot placeholder — images/admin-template-list.png: template table only.

Creating a template ​

A template is a preset: a fixed type and product list that is copied into ms3_product_sets for each product in the chosen category when you Apply (see below).

Steps ​

  1. Open Components → Product sets.
  2. Use the UI action to create a new template (button label may vary by version).
  3. Fill in the form:
FieldWhat to enter
nameClear name for managers (stored as template_name on generated links).
typeOne of the admin types: buy_together, similar, popcorn, cart_suggestion, vip. Frontend logic for ms3ProductSets depends on matching type. Types like auto, auto_sales are snippet-only, not template types.
related_product_idsComma-separated product IDs (e.g. 12,34,56) or picker selection if available. Order matters for output unless the snippet uses different sorting.
descriptionInternal note for the team; not shown on the site.
sortorderNumber for ordering templates in the admin list (lower first; exact sort depends on the UI).

  1. Save. The connector calls save_template; empty name or invalid related_product_ids will be rejected with an error.

  2. Confirm the new row appears in the list.

Screenshot placeholder — images/admin-template-form-create.png: create form with labelled fields (annotations on the image are fine).

Screenshot placeholder — images/admin-product-picker.png: product selection if a separate modal/picker exists.

Editing a template ​

  1. In the list, select the row (click or Edit, depending on UI).
  2. Change name, type, related_product_ids, description, sortorder.
  3. Save.

Important: this updates the row in ms3_product_set_templates. Links already applied to categories in ms3_product_sets are not rebuilt automatically — to refresh products for a whole category, run Apply to category again (use Replace for that type if needed).

Screenshot placeholder — images/admin-template-form-edit.png: edit form with sample data.

Deleting a template ​

The UI can remove a template from the list. That deletes the template record; existing product links with that template_name in ms3_product_sets do not disappear by themselves. To bulk-remove such links for a category, use Unbind (below).

Screenshot placeholder — optional images/admin-template-delete-confirm.png if a confirmation dialog exists.

Apply template to a category ​

  1. Select the template in the apply panel.
  2. Pick category (or several) in the resource tree — child categories with msProduct resources are usually included.
  3. Optionally enable “Replace existing sets of this type” — replace=true: for products in that branch, existing links of that type are removed first, then new ones are created from the template. Without replace, new links are added alongside existing ones (watch for unwanted duplicates).
  4. Click Apply.

Result: rows in ms3_product_sets with template_name set to the template name.

Screenshot placeholder — images/admin-apply-category.png: template selected, category tree, replace checkbox, Apply.

Unbind template ​

  • Removes only links created by that template (matching type + template_name).
  • Manual TV links and links from other templates stay.

Screenshot placeholder — images/admin-unbind.png: unbind UI with category + template.

TVs on the product card ​

Supported TVs:

  • ms3productsets_buy_together
  • ms3productsets_similar
  • ms3productsets_popcorn
  • ms3productsets_cart_suggestion
  • ms3productsets_vip

On product save, TVs sync into ms3_product_sets.

Typical workflow ​

  1. Bulk rules: create template → Apply to category.
  2. One-off overrides: edit TVs on the product resource.
  3. Verify the storefront with ms3ProductSets using the same type as the template/TV.
