Grid columns cookbook

Configure admin table columns: visibility, type, badge, relation, inline edit.

Full reference: Grid columns.

Goal

Change orders, customers, or category product lists without editing Vue components. Config is stored in ms3_grid_fields.

grid_key in 1.13

grid_key	Screen
orders	Orders list
order_products	Products inside an order
customers	Customers
vendors	Vendors
category-products	Product table on a category resource

Inline edit

Cell editing is enabled only for category-products. There is no inline edit on orders in 1.13. For the orders list use badge, relation, or model columns.

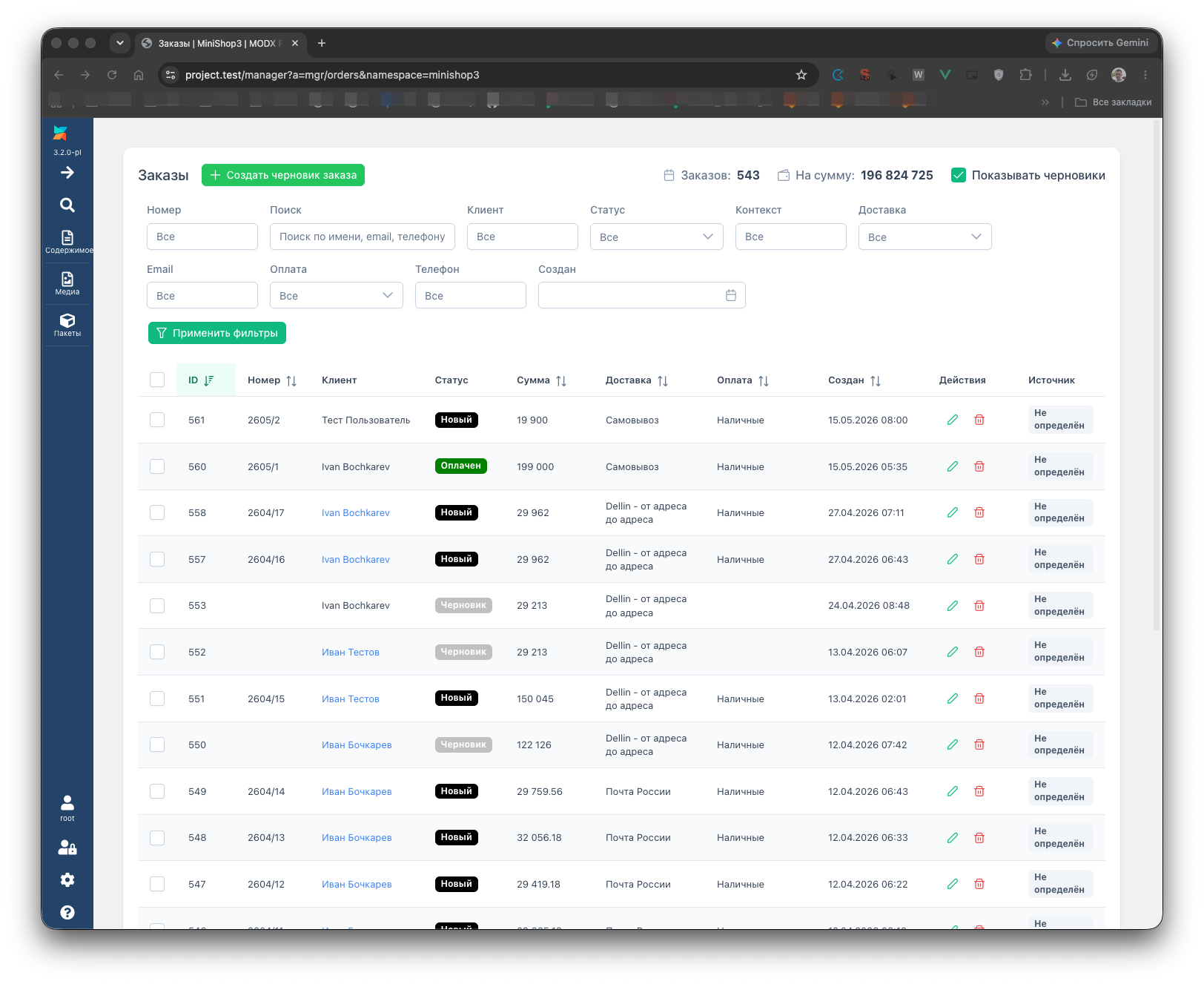

Case: status badge in orders

The default MS3 setup uses column order_status:

• hidden relation columns status_name and status_color load text and HEX from msOrderStatus
• visible column order_status with type badge

Badge config (from ms3_grid_fields):

{
  "type": "badge",
  "source_field": "status_name",
  "color_field": "status_color"
}

Custom badge column

1. Utilities → Grid columns → grid orders.
2. Add hidden relation columns if you need source_field / color_field from a related table.
3. Add a Badge column:
   • Value source field — column with label text
   • Color field — column with HEX (e.g. #3b82f6)
4. Save column order.

Via API:

POST /api/mgr/grid-config/orders/field

{
  "field_name": "my_badge",
  "label": "Badge",
  "type": "badge",
  "config": {
    "type": "badge",
    "source_field": "status_name",
    "color_field": "status_color"
  },
  "visible": true
}

Case: relation with aggregation (customers)

“Order count” for a customer:

1. Grid customers → new column, type relation.
2. Parameters:
   • table: msOrder
   • foreignKey: customer_id
   • displayField: id
   • aggregation: COUNT

Aggregations: COUNT, SUM, AVG, MIN, MAX. Relation aggregation is not supported for category-products.

Case: inline edit + select (category-products)

1. Grid category-products → pick a column (e.g. vendor_name or a product extra field).
2. Enable Inline cell edit.
3. Editor type: select.
4. editor_options — array of [value, label] pairs:

[
  ["1", "Warehouse A"],
  ["2", "Warehouse B"]
]

For a combo editor backed by an API reference, use editor_type: combo and a key from editor_references in GET /api/mgr/grid-config/category-products.

Case: product option column

1. Grid category-products → add column.
2. Type option, config option.key = option key (e.g. color).
3. Column name must not collide with built-in product fields (use a prefix like option_color if needed).

Case: price, weight, datetime

Types price, weight, and datetime format model column values without PHP.

Price in category-products:

1. Column price, type price.
2. displayConfig:

{
  "decimals": 2,
  "currency": "₽",
  "currency_position": "after",
  "thousands_separator": " "
}

Weight:

{
  "decimals": 2,
  "unit": "kg",
  "unit_position": "after"
}

Order created date (grid orders, field createdon):

{
  "format": "dd.MM.yyyy HH:mm"
}

Case: computed column

Type computed calls a PHP class on the server. Config must include computed.className:

{
  "type": "computed",
  "computed": {
    "className": "MyVendor\\Ms3\\Columns\\MarginColumn"
  }
}

The class must be in MODX autoload and implement ComputedFieldInterface. For simple price or date formatting use price / datetime instead.

API appendix

Read (view_document):

GET /api/mgr/grid-config/orders?include_hidden=1

Response:

{
  "columns": [ ... ],
  "direct_filter_keys": ["query", "status_id", "delivery_id"],
  "editor_references": []
}

direct_filter_keys are filters sent without the filter_ prefix in list queries. For orders the source is OrdersController::getDirectFilterKeys().

Save order and metadata (mssetting_save):

PUT /api/mgr/grid-config/orders

{
  "fields": [
    { "name": "id", "label": "ID", "visible": true, "sortable": true, "type": "model" },
    { "name": "order_status", "label": "Status", "visible": true, "type": "badge", "source_field": "status_name", "color_field": "status_color" }
  ]
}

The PUT body expects array fields, not columns.

Method	Path
POST	/api/mgr/grid-config/{grid_key}/field
PUT	/api/mgr/grid-config/{grid_key}/field/{field_name}
DELETE	/api/mgr/grid-config/{grid_key}/{field_name}

Troubleshooting

Symptom	Action
403 on PUT	mssetting_save
Badge without color	Check color_field and HEX in row data
Combo editor error	editor_references whitelist only for category-products
Column missing in orders list	visible: true, reload the grid

See routing: grid-config, Manager cookbooks.
