Spec table ​

Two-column table for technical data. Optional title and intro above the table.

Spec table

Информация

Requires PageBuilder Pro.

Specs in a table ​

  • Parameter/value rows, not buried in prose
  • Optional intro and section title
  • table field edits in the inspector

Typical pages ​

  • Product page: weight, size, material
  • Equipment page: specs
  • Single product spec sheet

Page examples ​

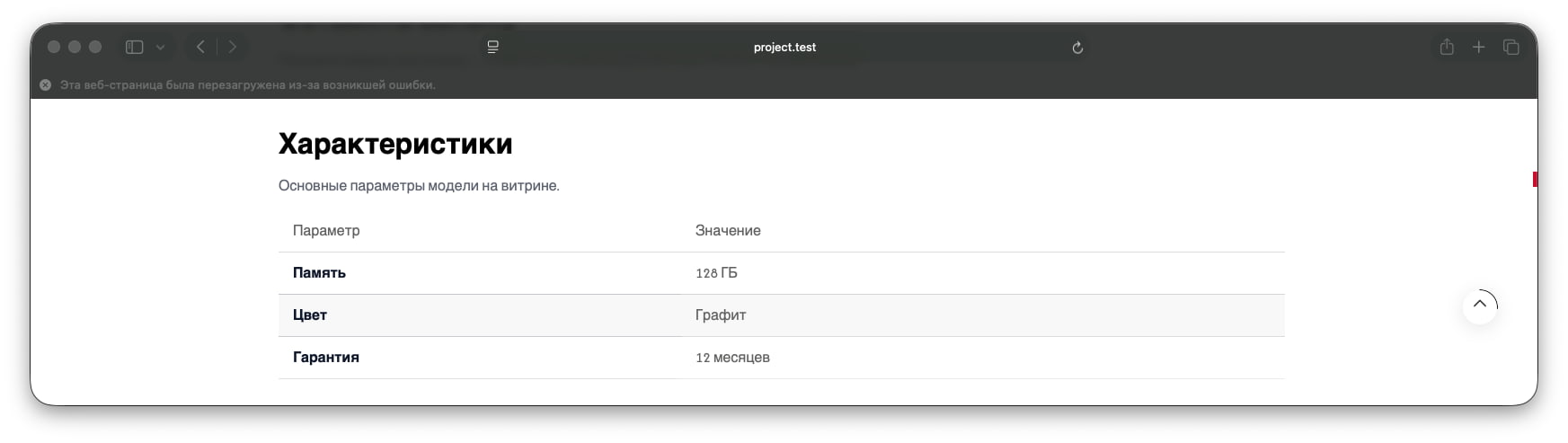

Spec table ​

Specifications table field: parameter and value columns. Striped rows enables zebra styling.

Similar sections ​

Block parameters ​

ParameterValue
keyspec_table
LayerPro
Categorycontent (content)
Chunkpagebuilderpro_spec_table
Requirespro

Inspector fields ​

Fill these fields in the section inspector. Field types are documented in the field types reference.

Title (title) ​

Type text. Optional.

Intro (intro) ​

Type textarea. Optional.

Specifications (specs) ​

Type table. Required. Table with fixed columns.

Columns:

ColumnTypeLabel
labeltextParameter
valuetextValue

The inspector supports group rows (_pbGroup), cell merges (_span on label / value), and a preview under the grid.

Striped rows (striped) ​

Type yesno. Optional. Yes/no toggle.

Site output ​

HTML table pb-spec-table. With striped, the class pb-spec-table--striped is added. Groups use pb-spec-table__row--group. Rows fully covered by a span use pb-spec-table__row--span-cont.

Section data ​

Example payload after save. On output Pro adds spec_rows via TableCells::present() (_pb_cells on each row):

json
{
  "title": "Specifications",
  "intro": "Main product parameters.",
  "striped": true,
  "specs": [
    { "label": "Dimensions", "value": "", "_pbGroup": true },
    {
      "label": "Storage",
      "value": "128 GB",
      "_span": { "value": { "colspan": 1, "rowspan": 2 } }
    },
    { "label": "With case", "value": "" },
    { "label": "Color", "value": "Graphite" }
  ]
}

Chunk template ​

Fenom chunk pagebuilderpro_spec_table uses $spec_rows, otherwise $specs:

fenom
{set $rows = $spec_rows|default:($specs|default:[])}
<section class="pb-section pb-section--spec-table pb-spec-table{if $striped} pb-spec-table--striped{/if}{if $cssClass} {$cssClass|escape}{/if}" data-pb-section="spec_table"{if $id} id="pb-{$id|escape}"{/if}>
  <div class="pb-section__inner pb-spec-table__inner">
    {if $title}
      <h2 class="pb-heading pb-spec-table__title">{$title|escape}</h2>
    {/if}
    {if $intro}
      <p class="pb-spec-table__intro">{$intro|escape}</p>
    {/if}
    {if $rows && ($rows | length) > 0}
      <div class="pb-spec-table__scroll">
        <table class="pb-spec-table__table">
          <thead>
            <tr>
              <th scope="col">{'pagebuilder_fe_spec_param' | lexicon}</th>
              <th scope="col">{'pagebuilder_fe_spec_value' | lexicon}</th>
            </tr>
          </thead>
          <tbody>
            {foreach $rows as $row}
              {if $row._pbGroup}
                <tr class="pb-spec-table__row--group">
                  <th colspan="2" scope="colgroup">{$row.label|default:''|escape}</th>
                </tr>
              {elseif $row._pb_cells.label.hidden && $row._pb_cells.value.hidden}
                <tr class="pb-spec-table__row--span-cont" aria-hidden="true"></tr>
              {else}
                <tr>
                  {if !$row._pb_cells.label.hidden}
                    <th scope="row" colspan="{$row._pb_cells.label.colspan|default:1}" rowspan="{$row._pb_cells.label.rowspan|default:1}">{$row.label|default:''|escape}</th>
                  {/if}
                  {if !$row._pb_cells.value.hidden}
                    <td colspan="{$row._pb_cells.value.colspan|default:1}" rowspan="{$row._pb_cells.value.rowspan|default:1}">{$row.value|default:''|escape}</td>
                  {/if}
                </tr>
              {/if}
            {/foreach}
          </tbody>
        </table>
      </div>
    {else}
      <p class="pb-spec-table__empty">{'pagebuilder_fe_spec_empty' | lexicon}</p>
    {/if}
  </div>
</section>

Cell text is escaped (|escape). HTML from the editor is not executed on the site.
