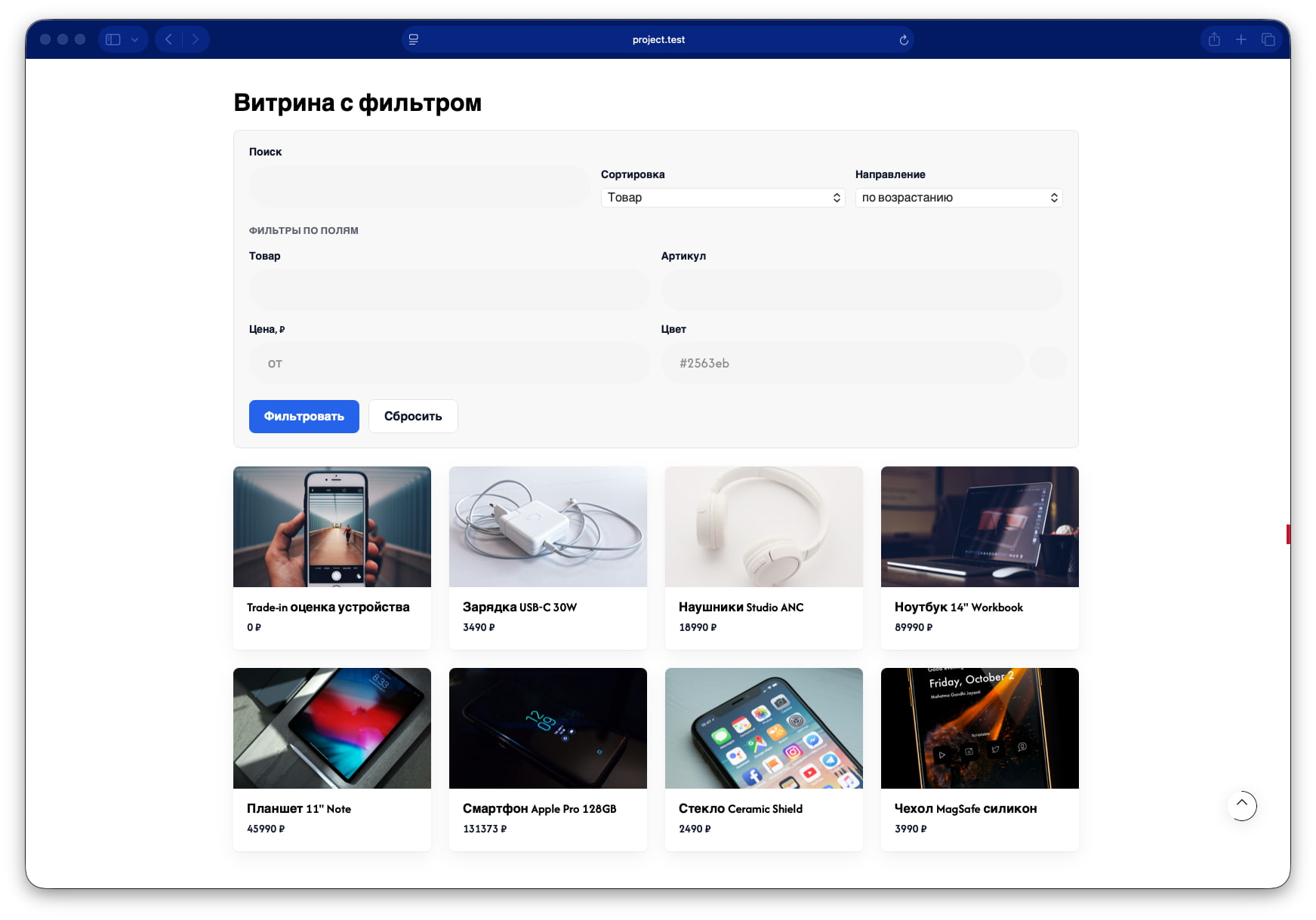

Filterable grid

Section filterable_grid shows rows with filters in the URL. On the site the form, sort, and pagination run through Ajax (pagebuilder-filterable-grid.js), and the address updates with history.pushState. Without JavaScript the form stays a normal GET. Chunk: pagebuilderpro_filterable_grid. Requires PageBuilder Pro and capability datasources.

Filterable grid

Pick a datasource: modx-resources, pagebuilder-tables, or minishop3.
For tables set the table key.
On the site the form writes pb_fg_{sectionId}_search, _sort, _dir, _page, and _f_{field} into the URL. The reset button uses lexicon pagebuilder_fe_filter_clear.

Pagination in the chunk uses range and foreach. Fenom {for} is not supported here.

Query operators match the dynamic list: eq, contains, in, gte, lte, between, empty, not_empty. contains is case-insensitive, including Cyrillic. Keys sql, php, snippet, and class are rejected. Page size is at most 100.

Filter labels come from the table schema column label, not from the field key. An image column is excluded from filters and sorting. The form maps field type to an operator: text → contains, number and currency → gte, color → eq. A page number past the last page is clamped to the last page.

The section is part of the page context so the HTML cache does not freeze the filter.

Fields

Field	Type	Required	Purpose
`title`	text	no	Section title
`datasource`	datasource	yes	Provider and query
`limit`	number	no	Page size

Render

The form uses method="get". pagebuilder-filterable-grid.js submits it with Ajax and writes the same parameters into the address with history.pushState. Without the script the form stays a normal GET. Parameter prefix is pb_fg_{id}_. DatasourceSectionEnricher writes it to filter_param_prefix. Names: search, sort, dir, f_{field}, page. Field id is skipped in the filter inputs.

Pagination is drawn when page_count is greater than 1. An empty result uses lexicon pagebuilder_fe_filter_empty, fallback No items. Errors match dynamic list.

Section data

json

{
  "title": "Catalog",
  "datasource": {
    "provider": "modx-resources",
    "table": "",
    "filters": [],
    "sort": [{ "field": "menuindex", "direction": "asc" }],
    "search": "",
    "limit": 12
  },
  "limit": 12
}

Chunk template

Fenom chunk pagebuilderpro_filterable_grid:

fenom

{set $prefix = $filter_param_prefix|default:'pb_fg_'}
{set $sectionDomId = $id|default:'filterable_grid'}
{set $qs = ''}
{if $search_value}{set $qs = $qs ~ '&' ~ $prefix ~ 'search=' ~ ($search_value|urlencode)}{/if}
{if $sort_field}{set $qs = $qs ~ '&' ~ $prefix ~ 'sort=' ~ ($sort_field|escape) ~ '&' ~ $prefix ~ 'dir=' ~ ($sort_direction|escape)}{/if}
{if $filter_values}
  {foreach $filter_values as $fname => $fval}
    {if $fval !== ''}{set $qs = $qs ~ '&' ~ $prefix ~ 'f_' ~ $fname ~ '=' ~ ($fval|urlencode)}{/if}
  {/foreach}
{/if}
<section
  class="pb-section pb-section--filterable-grid pb-filterable-grid"
  data-pb-section="filterable_grid"
  data-pb-filterable-grid
  data-pb-fg-prefix="{$prefix|escape}"
  data-pb-fg-loading="{$lex_loading|default:'Loading…'|escape}"
  {if $id} id="pb-{$id|escape}"{/if}
>
  <div class="pb-section__inner">
    {if $title}<h2 class="pb-heading pb-filterable-grid__title">{$title|escape}</h2>{/if}

    <form class="pb-filterable-grid__filters" method="get" action="" data-pb-fg-form>
      <div class="pb-filterable-grid__toolbar">
        <label class="pb-filterable-grid__search" for="pb-{$sectionDomId|escape}-search">
          <span class="pb-filterable-grid__label">{$lex_search|default:'Search'|escape}</span>
          <input
            id="pb-{$sectionDomId|escape}-search"
            class="pb-filterable-grid__control"
            type="search"
            name="{$prefix|escape}search"
            value="{$search_value|escape}"
            autocomplete="off"
          />
        </label>
        {if $datasource_field_defs}
          <label class="pb-filterable-grid__sort" for="pb-{$sectionDomId|escape}-sort">
            <span class="pb-filterable-grid__label">{$lex_sort|default:'Sort'|escape}</span>
            <select id="pb-{$sectionDomId|escape}-sort" class="pb-filterable-grid__control" name="{$prefix|escape}sort">
              <option value="">{$lex_select_placeholder|default:'—'|escape}</option>
              {foreach $datasource_field_defs as $field}
                {if $field.type == 'image' || $field.key == 'id'}{continue}{/if}
                <option value="{$field.key|escape}"{if $sort_field == $field.key} selected{/if}>{$field.label|default:$field.key|escape}</option>
              {/foreach}
            </select>
          </label>
          <label class="pb-filterable-grid__dir" for="pb-{$sectionDomId|escape}-dir">
            <span class="pb-filterable-grid__label">{$lex_direction|default:'Direction'|escape}</span>
            <select id="pb-{$sectionDomId|escape}-dir" class="pb-filterable-grid__control" name="{$prefix|escape}dir">
              <option value="asc"{if $sort_direction != 'desc'} selected{/if}>{$lex_dir_asc|default:'asc'|escape}</option>
              <option value="desc"{if $sort_direction == 'desc'} selected{/if}>{$lex_dir_desc|default:'desc'|escape}</option>
            </select>
          </label>
        {/if}
      </div>

      {if $datasource_field_defs}
        <fieldset class="pb-filterable-grid__fields">
          <legend class="pb-filterable-grid__legend">{$lex_filters_legend|default:'Filters'|escape}</legend>
          <div class="pb-filterable-grid__fields-grid">
            {foreach $datasource_field_defs as $field}
              {if $field.key == 'id' || $field.type == 'image'}{continue}{/if}
              {set $ftype = $field.type|default:'text'}
              {set $fid = 'pb-' ~ $sectionDomId ~ '-f-' ~ $field.key}
              {set $fval = $filter_values[$field.key]|default:''}
              <label class="pb-filterable-grid__field" for="{$fid|escape}">
                <span class="pb-filterable-grid__label">{$field.label|default:$field.key|escape}</span>
                {if $ftype == 'number' || $ftype == 'currency'}
                  <input
                    id="{$fid|escape}"
                    class="pb-filterable-grid__control"
                    type="number"
                    inputmode="decimal"
                    min="0"
                    step="any"
                    name="{$prefix|escape}f_{$field.key|escape}"
                    value="{$fval|escape}"
                    placeholder="{$lex_price_from|default:''|escape}"
                  />
                {elseif $ftype == 'color' || $ftype == 'colorpalette'}
                  <span class="pb-filterable-grid__color">
                    <input
                      id="{$fid|escape}"
                      class="pb-filterable-grid__control pb-filterable-grid__control--color-text"
                      type="text"
                      name="{$prefix|escape}f_{$field.key|escape}"
                      value="{$fval|escape}"
                      placeholder="#2563eb"
                      spellcheck="false"
                      autocomplete="off"
                      data-pb-fg-color-text
                    />
                    <input
                      class="pb-filterable-grid__control pb-filterable-grid__control--color"
                      type="color"
                      value="{if $fval}{$fval|escape}{else}#2563eb{/if}"
                      aria-label="{$field.label|default:$field.key|escape}"
                      data-pb-fg-color-swatch
                      tabindex="-1"
                    />
                  </span>
                {else}
                  <input
                    id="{$fid|escape}"
                    class="pb-filterable-grid__control"
                    type="text"
                    name="{$prefix|escape}f_{$field.key|escape}"
                    value="{$fval|escape}"
                  />
                {/if}
              </label>
            {/foreach}
          </div>
        </fieldset>
      {/if}

      <div class="pb-filterable-grid__actions">
        <button type="submit" class="pb-button pb-filterable-grid__submit">{$lex_filter|default:'Filter'|escape}</button>
        <button type="reset" class="pb-button pb-button--secondary pb-filterable-grid__clear" data-pb-fg-clear>{$lex_clear|default:'Clear'|escape}</button>
      </div>
    </form>

    <div class="pb-filterable-grid__results" data-pb-fg-results aria-live="polite" aria-busy="false" aria-label="{$lex_results|default:'Results'|escape}">
      {if $query_error}
        <p class="pb-filterable-grid__error" role="alert">{$query_error|escape}</p>
      {elseif !$items || $items|count == 0}
        <p class="pb-filterable-grid__empty" role="status">{$lex_empty|default:'No items.'|escape}</p>
      {else}
        <div class="pb-filterable-grid__items">
          {foreach $items as $item}
            <article class="pb-filterable-grid__card">
              {set $label = $item.pagetitle|default:$item.title|default:$item.name|default:$item.label|default:$item.id}
              {if $item.image}
                {if $item.uri}
                  <a class="pb-filterable-grid__media" href="{$item.uri|escape}">
                    <img class="pb-filterable-grid__image" src="{$item.image|escape}" alt="{$label|escape}" loading="lazy" />
                  </a>
                {else}
                  <img class="pb-filterable-grid__image" src="{$item.image|escape}" alt="{$label|escape}" loading="lazy" />
                {/if}
              {/if}
              <div class="pb-filterable-grid__card-body">
                <h3 class="pb-filterable-grid__card-title">
                  {if $item.uri}
                    <a href="{$item.uri|escape}">{$label|escape}</a>
                  {else}
                    {$label|escape}
                  {/if}
                </h3>
                {if $item.price !== '' && $item.price !== null}
                  <p class="pb-filterable-grid__meta">{$item.price|escape} ₽</p>
                {/if}
                {if $item.uri && !$item.image}
                  <p><a class="pb-filterable-grid__open" href="{$item.uri|escape}">{$lex_open|default:'Open'|escape}</a></p>
                {/if}
              </div>
            </article>
          {/foreach}
        </div>
        {if $page_count > 1}
          <nav class="pb-filterable-grid__pagination" aria-label="{$lex_pagination|default:'Pagination'|escape}" data-pb-fg-pagination>
            {set $pages = range(1, $page_count)}
            {foreach $pages as $p}
              {if $p == $page}
                <span aria-current="page">{$p}</span>
              {else}
                <a href="?{$prefix|escape}page={$p}{$qs}" data-pb-fg-page="{$p}">{$p}</a>
              {/if}
            {/foreach}
          </nav>
        {/if}
      {/if}
    </div>
  </div>
</section>
