Gallery carousel ​

Same slides as Gallery, one per view with navigation. Optional autoplay.

Информация

Requires PageBuilder Pro.

  • Saves vertical space on mobile
  • Optional autoplay
  • Same slide fields as Gallery

Where it fits ​

  • Homepage banners
  • Portfolio: large work previews
  • Product photos: angles on a landing page

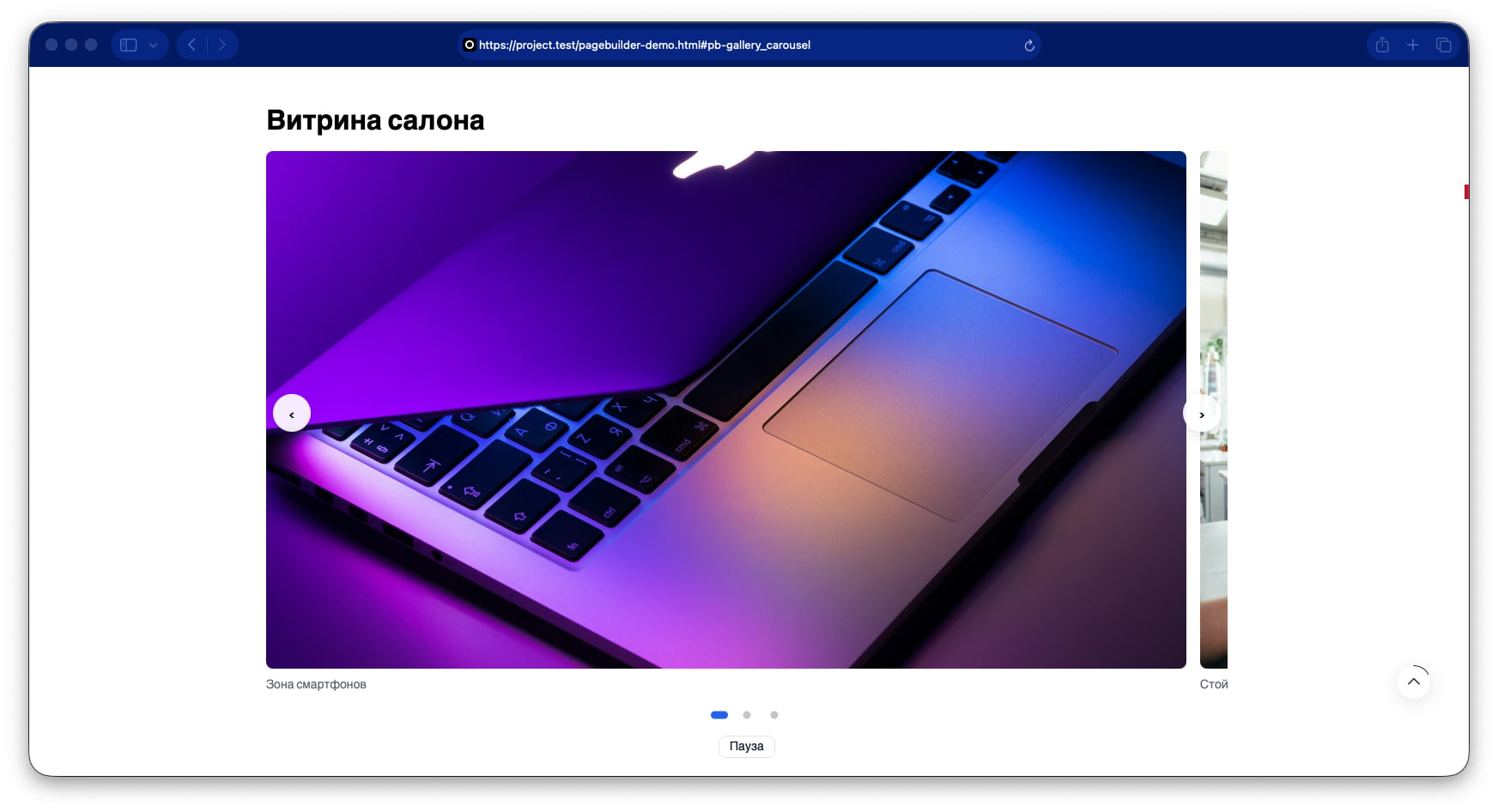

Page examples ​

Slides and autoplay ​

Slides repeater like Gallery. Autoplay enables a timer; load pagebuilder-sections.js on the front end.

Similar sections ​

Block parameters ​

ParameterValue
keygallery_carousel
LayerPro
Categorymedia (media)
Chunkpagebuilderpro_gallery_carousel
Requirespro

Inspector fields ​

Fill these fields in the section inspector. Field types are documented in the field types reference.

Title (title) ​

Type text. Optional.

Autoplay (autoplay) ​

Type yesno. Optional. Yes/no toggle.

Slides (items) ​

Type repeater. Required. Repeatable rows. "Add" button in the inspector.

Each row:

FieldTypeLabelRequired
imageimageImageyes
alttextAlt textno
captiontextCaptionno

Site output ​

pb-carousel with image partials.

Section data ​

Example payload after save. Media, video, and map values may be enriched on output:

json
{
  "title": "Section title",
  "autoplay": false,
  "items": [
    {
      "_rowId": "00000000-0000-4000-8000-000000000001",
      "image": {
        "url": "assets/images/example.jpg",
        "id": 12,
        "filename": "example.jpg",
        "extension": "jpg",
        "title": "example.jpg",
        "width": 1920,
        "height": 1080,
        "type": "image"
      },
      "alt": "Image description for screen readers",
      "caption": "Caption under the image"
    }
  ]
}

Chunk template ​

Fenom chunk pagebuilderpro_gallery_carousel:

fenom
{var $slideCount = $items|count}
<section
  class="pb-section pb-section--gallery-carousel pb-gallery-carousel{if $cssClass} {$cssClass|escape}{/if}"
  data-pb-section="gallery_carousel"
  data-pb-carousel
  data-pb-autoplay="{$autoplay|default:0}"
  {if $id} id="pb-{$id|escape}"{/if}
>
  <div class="pb-section__inner">
    {if $title}
      <h2 class="pb-heading">{$title|escape}</h2>
    {/if}
    <div class="pb-carousel__viewport" tabindex="0" role="region" aria-roledescription="carousel" aria-label="{$title|default:'Gallery'|escape}">
      <div class="pb-carousel__track">
        {foreach $items as $item}
          <figure class="pb-carousel__slide" role="group" aria-roledescription="slide" aria-label="{$item@index + 1} / {$slideCount}">
            {include 'pagebuilder_partial_image' image=$item.image alt=($item.alt ?: $item.caption) class='pb-carousel__media'}
            {if $item.caption}
              <figcaption class="pb-carousel__caption">{$item.caption|escape}</figcaption>
            {/if}
          </figure>
        {/foreach}
      </div>
      {if $slideCount > 1}
        <div class="pb-carousel__controls">
          <button type="button" class="pb-carousel__btn" data-pb-carousel-prev aria-label="Previous slide">‹</button>
          <button type="button" class="pb-carousel__btn" data-pb-carousel-next aria-label="Next slide">›</button>
        </div>
        <div class="pb-carousel__dots" role="tablist" aria-label="Slides">
          {foreach $items as $item}
            <button
              type="button"
              class="pb-carousel__dot{if $item@first} pb-carousel__dot--active{/if}"
              data-pb-carousel-dot="{$item@index}"
              role="tab"
              aria-label="Slide {$item@index + 1}"
              {if $item@first}aria-selected="true"{/if}
            ></button>
          {/foreach}
        </div>
      {/if}
    </div>
  </div>
</section>

JSON definition ​

PageBuilderPro/core/components/pagebuilderpro/sections/gallery_carousel.json

See also ​
