Frontend

Snippet calls, chunk placeholders, CSS/JS, and how a bundle looks in the cart. Snippet parameters are also covered under Snippets.

Before diving into chunks, check two things:

<head> includes msBundles.initialize. Otherwise add buttons and styles will not work.
msCart has selector. Otherwise you get a toast after add, and the on-page cart block stays stale.

How the card looks

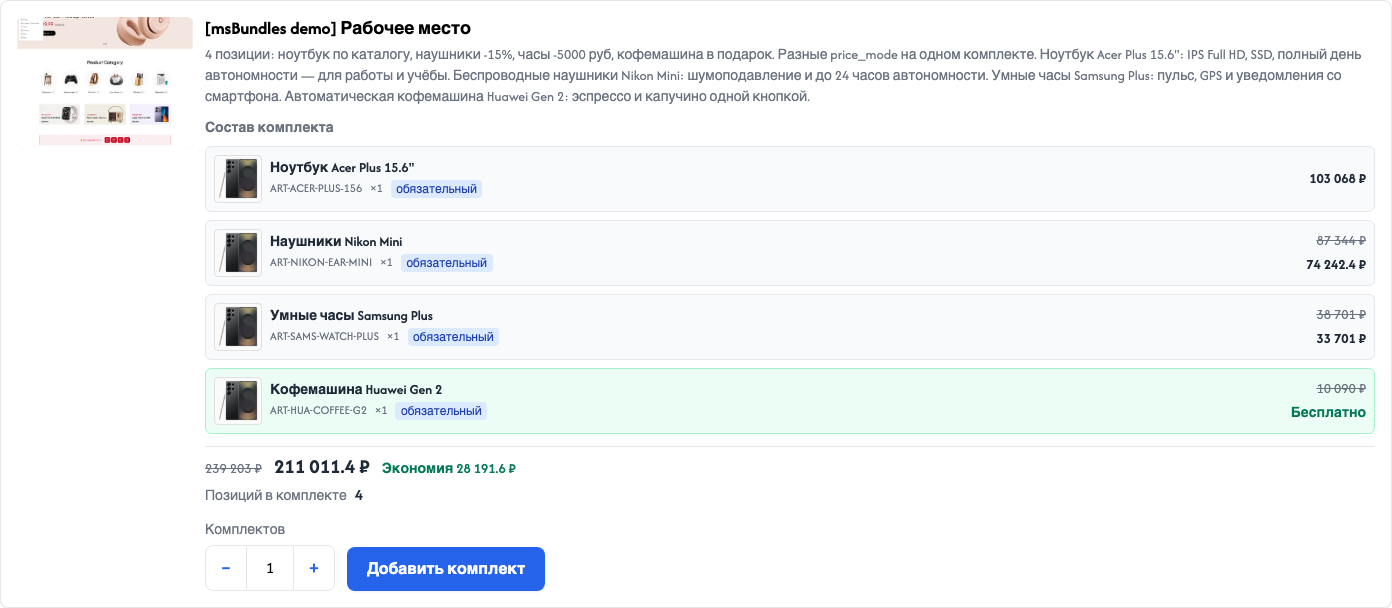

Card: Desk set

Card: Travel set

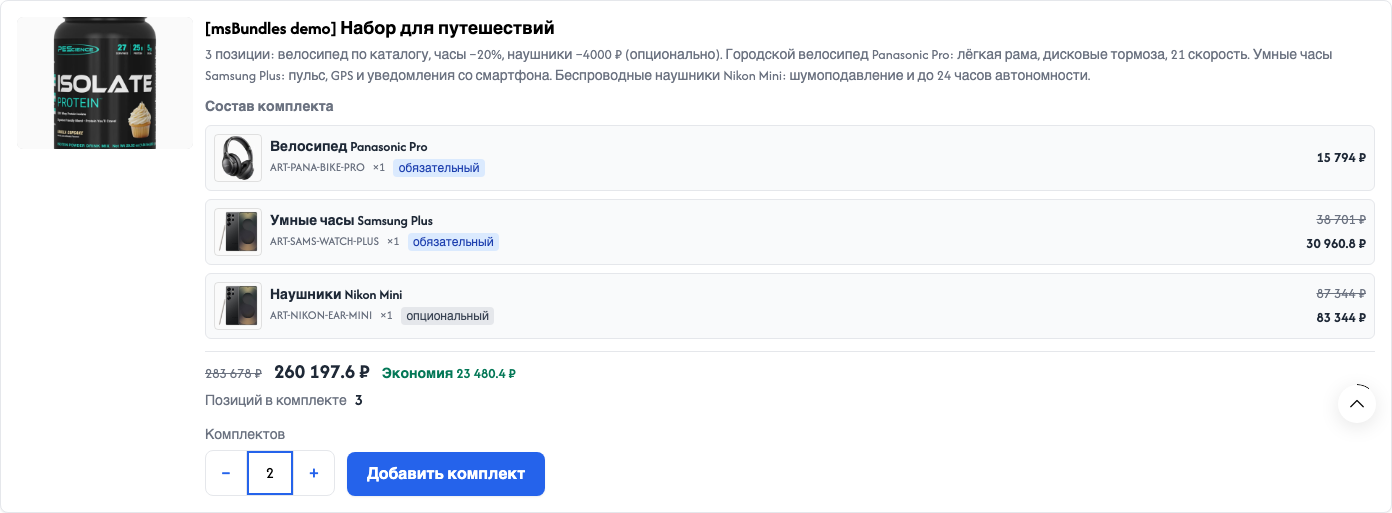

Card: qty=2

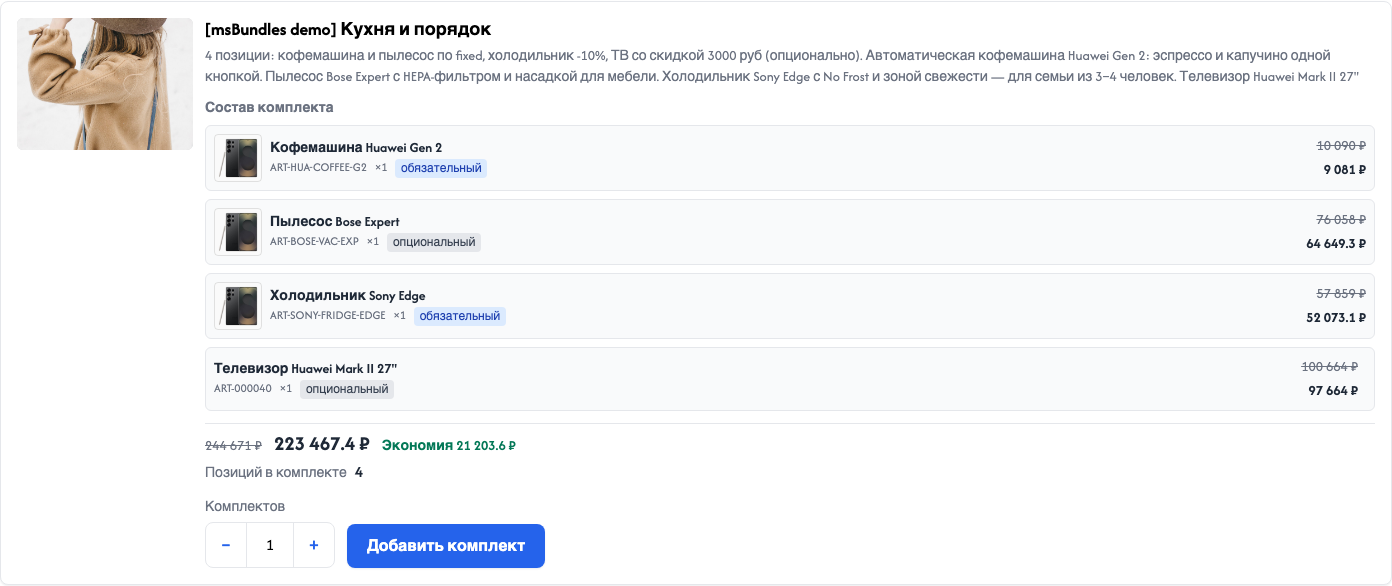

Card: Kitchen (fixed + optional)

Ready-made product page

fenommodx

fenom

{extends 'file:templates/base.tpl'}

{block 'head'}
  {'!msBundles.initialize' | snippet}
{/block}

{block 'content'}
  <h1>{$_modx->resource.pagetitle}</h1>

  {'!msBundles' | snippet : [
    'product' => $_modx->resource.id,
    'tpl' => 'tplMsBundlesItem',
    'wrapperTpl' => 'tplMsBundlesList',
    'emptyTpl' => 'tplMsBundlesEmpty',
    'activeOnly' => true,
    'quantity' => 1
  ]}

  <section id="ms-cart" data-ms-cart aria-live="polite">
    {'!msCart' | snippet : [
      'tpl' => 'tpl.msCart',
      'return' => 'tpl',
      'selector' => '#ms-cart'
    ]}
  </section>
{/block}

modx

[[!msBundles.initialize]]

[[!msBundles?
  &product=`[[*id]]`
  &tpl=`tplMsBundlesItem`
  &wrapperTpl=`tplMsBundlesList`
  &emptyTpl=`tplMsBundlesEmpty`
  &activeOnly=`1`
  &quantity=`1`
]]

<div id="ms-cart" data-ms-cart aria-live="polite">
  [[!msCart?
    &tpl=`tpl.msCart`
    &return=`tpl`
    &selector=`#ms-cart`
  ]]
</div>

In tpl.msCart, call tplMsBundlesCartInfo under the product name (see below).

Bundle selection logic

bundle > 0 — one bundle by ID. If inactive and activeOnly=1, empty result.
Else product > 0 — bundles that include the product.
If nothing found or both are 0 — emptyTpl.

With msbundles_stock_behavior=hide and unavailable stock, the card is omitted. block and message keep the card with --blocked / --warning modifiers.

Theme (CSS variables)

Override tokens on .msbundles (or :root) so cards match the store palette:

css

.msbundles {
  --msbundles-color-accent: #your-brand;
  --msbundles-color-accent-hover: #your-brand-dark;
  --msbundles-color-text: #111827;
  --msbundles-color-muted: #6b7280;
  --msbundles-color-border: #e5e7eb;
  --msbundles-color-surface: #fff;
  --msbundles-radius: 0.5rem;
}

Variable	Purpose
`--msbundles-color-accent`	Accent: product links, Add button, cart badges
`--msbundles-color-accent-hover`	Hover / active for accent buttons and links
`--msbundles-color-text`	Primary text on the card and composition
`--msbundles-color-muted`	Secondary text: description, SKU, captions
`--msbundles-color-border`	Borders for the card, composition rows, inputs
`--msbundles-color-surface`	Bundle card background
`--msbundles-radius`	Corner radius for the card, inputs, and buttons

More tokens in msbundles.css: spacing (--msbundles-space-*), fonts (--msbundles-font-*), savings/free (--msbundles-color-savings, --msbundles-color-free*), warning/error (--msbundles-color-warning*, --msbundles-color-danger*), shadow and focus-ring.

Card placeholders (`tplMsBundlesItem`)

Placeholder	Description
`id`	Bundle ID
`name`	Name
`description`	Description
`image`, `image_url`	Image URL
`image_html`	`<div class="msbundles__media">…</div>` block or empty
`has_image`	`0` / `1` — image present
`active`	`0` / `1` — active
`quantity`	Requested number of bundles
`item_count`	Sum of product units in the set
`product_count`	Number of lines
`products`	Composition rows HTML (`productTpl`)
`composition_html`	“Composition” section or empty
`price_html`	Price, strikethrough, savings. At `0` — “Free”
`total`	Total (number)
`original_total`	Sum at original prices
`savings`	Savings (number)
`total_formatted`	Total with currency or “Free”
`original_total_formatted`	Original with currency
`savings_formatted`	Savings with currency
`available`	`0` / `1` — can order
`stock_message`	Stock error or warning
`state_modifier`	`msbundles__item--available` / `--warning` / `--blocked`
`stock_behavior`	`block`, `message`, `hide`
`max_bundle_quantity`	Qty field limit

tplMsBundlesList: items — card HTML. With no bundle image and imageFallback=1, the card uses the first product thumb.

Composition line placeholders (`tplMsBundlesProduct`)

The stock chunk uses {$product_id}. In a custom chunk you can mirror catalog-style attributes with id = product_id.

Placeholder	Description
`product_id`	Product ID
`name`	Name
`name_html`	Name in a link or plain text
`article`	SKU
`url`	Product URL
`image`, `image_url`	Thumb or image
`image_html`	`<span class="msbundles__product-media">…</span>` block or empty
`quantity`	Units of this product in one bundle
`bundle_quantity`	Requested number of bundles
`line_quantity`	`quantity × bundle_quantity`
`required`	`0` / `1` — required line
`required_label`	“Required” / “Optional”
`price_mode`	`original`, `fixed`, `discount_percent`, `discount_amount`, `free`
`is_free`	`0` / `1` — line price is `0`
`unit_price`	Unit price after the price mode
`unit_price_formatted`	Price with currency or “Free”
`unit_price_html`	`<span class="msbundles__price">…</span>`
`original_unit_price`	Original unit price
`original_unit_price_formatted`	Original with currency
`original_price_html`	Strikethrough price or empty
`line_total`	Line total
`line_total_formatted`	Total with currency or “Free”

Custom card chunk

Classes (msbundles__*) are for styling only. JS finds nodes by data attributes.

fenom

<article
  data-msbundles="item"
  data-ms-bundle="{$id}"
  data-ms-bundle-available="{$available}"
>
  <h3>{$name}</h3>
  <div data-msbundles="summary">
    <p data-msbundles="price">{$price_html}</p>
    <span data-msbundles="product-count">{$product_count}</span>
  </div>
  <p data-msbundles="stock" role="status">{$stock_message}</p>
  <div data-msbundles="controls">
    <button type="button" data-msbundles-action="qty-dec" data-ms-bundle="{$id}">−</button>
    <input type="number" data-bundle-quantity data-ms-bundle="{$id}" value="{$quantity}" min="1" />
    <button type="button" data-msbundles-action="qty-inc" data-ms-bundle="{$id}">+</button>
    <button type="button" data-msbundles-action="add-bundle" data-ms-bundle="{$id}">
      {'msbundles.add_bundle' | lexicon}
    </button>
  </div>
</article>

Changing qty calls calculate: [data-msbundles="price"] gets price.price_html, stock status goes to [data-msbundles="stock"].

Storefront data attributes (JS contract)

Attribute	Where	Purpose
`data-msbundles="list"`	list wrapper	Bundle list root
`data-msbundles="item"`	card	Card root
`data-ms-bundle`	card / controls	Bundle ID
`data-ms-bundle-available`	card	`1` / `0` after calculate
`data-ms-bundle-stock`	card	`available` / `warning` / `blocked`
`data-msbundles="summary"`	summary block	Anchor for stock message
`data-msbundles="price"`	price line	HTML replaced after calculate
`data-msbundles="product-count"`	line count	Meta (server render)
`data-msbundles="stock"`	stock message	Errors and warnings
`data-msbundles="controls"`	qty + CTA	Action group
`data-bundle-quantity`	input	“Bundles” value
`data-msbundles-action="qty-dec"` / `qty-inc`	buttons	Quantity stepper
`data-msbundles-action="add-bundle"`	button	Add to cart
`data-msbundles="product"`	composition row	Bundle line
`data-product-id`	composition row	Product ID
`data-msbundles="product-price"`	line price	Price in composition
`data-msbundles="cart-info"`	cart block	Lead/member metadata
`data-bundle-hash`	cart-info / cart row	Links bundle rows
`data-bundle-lead`	cart-info / row	`1` = lead
`data-msbundles="name"`	cart name	Name for confirm/remove
`data-msbundles-action="remove-bundle"`	button	Remove bundle

Legacy data-action with the same values is still accepted. Use data-msbundles-action in new chunks.

You can restyle msbundles__* / msbundles-cart-* in the theme. JS does not depend on those classes (except optional modifiers like --busy set by the script).

Loading CSS and JS

Via snippet (preferred):

fenommodx

fenom

{'!msBundles.initialize' | snippet}

modx

[[!msBundles.initialize]]

The snippet loads msbundles.css, then scripts in order: msbundles-helpers.js → msbundles-cart.js → msbundles.js. Before scripts it outputs window.msbundlesConfig and window.msbundlesLexicon.

Config key	Default	Purpose
`autoBind`	`true`	Auto-bind handlers
`apiBaseUrl`	`''`	API prefix if Router is not on the default path
`maxBundleQuantity`	from setting	Qty field limit
`calculateDebounceMs`	`350`	Price recalculation debounce
`confirmRemoveBundle`	`false`	`confirm()` before “Remove bundle”. Off by default, like a normal MS3 product

Custom config before the snippet:

html

<script>window.msbundlesConfig = { confirmRemoveBundle: true };</script>

“Remove bundle” works like the × on a normal product: ms3.cartUI.handleRemove runs, miniShop3 shows a toast, and the plugin clears the other rows of the set. A separate REST call to /bundle/remove is rare. It is used only when the main row has no product key for the normal cart remove path.

Add and remove need the ms3_token cookie.

JS events

Event	When
`msbundles:before`	Before calculate / add / remove
`msbundles:success`	Successful add / remove
`msbundles:error`	API error
`msbundles:updated`	Price recalculation or successful change

html

<script>
document.addEventListener('msbundles:success', function (e) {
  console.log(e.detail.action, e.detail.result);
});
</script>

After add/remove: toast via ms3.message and cart refresh via MsBundles.refreshCart().

Public API `window.MsBundles`

Method	Purpose
`bind`	Attach handlers to cards and the cart
`addBundle`	POST add bundle
`removeBundle`	Remove by `bundle_hash` when the normal cart path is unavailable
`calculate`	Recalculate price and stock
`applyCalculateToCard`	Update card price from a calculate response
`enhanceCartDisplay`	Lead/member UI on an already rendered table
`applyCartRenderFallback`	Inject HTML if MS3 did not return `render`
`refreshCart`	GET `/api/v1/cart/get` with `render` and refresh `msCart` blocks
`request`	Low-level API call
`events`	DOM event name map

Bundle in the cart

A bundle sits in the cart as several miniShop3 rows linked by bundle_hash in options. The main row controls quantity. The other products in the set follow it. One “Remove bundle” button clears the whole set.

Without selector on msCart, the toast after add still appears, but the on-page HTML stays stale. selector registers the block in ms3Config.render.cart. After add/remove the front end calls /api/v1/cart/get with render tokens and redraws the cart.

Hook in `tpl.msCart`

Under the product name, call tplMsBundlesCartInfo:

fenom

{if $product.options.msbundles?}
    {'tplMsBundlesCartInfo' | chunk : $product.options.msbundles}
{elseif $product.options.bundle_hash?}
    {'tplMsBundlesCartInfo' | chunk : [
        'id' => $product.options.bundle_id,
        'name' => $product.options.bundle_name,
        'hash' => $product.options.bundle_hash
    ]}
{/if}

On the table row (<tr>), add data-bundle-hash from the product options. That is how JS knows which rows belong to the same set.

If your cart chunk shows a discounted price, wrap the current price in msbundles-cart-price__now and the old (strikethrough) price in msbundles-cart-price__was. Stock CSS styles them as “now” and “was”.

`tplMsBundlesCartInfo` placeholders

Placeholder	Description
`id`	Bundle ID
`name`	Bundle name
`hash`	Shared `bundle_hash` for the set
`is_lead`	`1` on the main row of the set
`line_index`	Row number in the set (`1` = main)
`lines_count`	How many products are in the set
`quantity`	How many bundles the shopper took

Row	How to tell	What the shopper sees
Main	`is_lead=1` or `line_index=1`	“Bundle” badge, name, “Remove bundle”
Other	other rows with the same `bundle_hash`	“Part of bundle…”

If older cart rows lack nested options.msbundles, the msOnGetCart plugin marks the main row for the badge. The product key in the cart does not change.

What JS does after the cart renders

enhanceCartDisplay:

marks set rows with attributes and styling classes
hides the per-item × on products that belong to the set
locks quantity on nested rows and shows an “As in bundle” hint
leaves the quantity field only on the main row

When the shopper changes quantity on the main row, the miniShop3 plugin (msOnBeforeChangeInCart) updates the other products in the same set.

When the shopper clicks “Remove bundle” or the × on any row of the set, normal miniShop3 cart removal runs (ms3.cartUI.handleRemove). The plugin (msOnBeforeRemoveFromCart) clears the rest of the set. REST /bundle/remove runs only if that normal cart path is unavailable. See Events.

msbundles.css styles only the bundle block and qty/remove helpers. Logic finds nodes by data-msbundles and data-bundle-*, not by theme class names. In bundle rows, product thumbs are capped at a 4rem square (object-fit: cover).

If your cart chunk does not call tplMsBundlesCartInfo, the shopper will not see the “Bundle” badge, the “Part of bundle…” label, or the “Remove bundle” button.

If the cart does not update

Symptom	Check
Toast yes, block stale	No `selector` on `msCart`, or container id mismatch
No badges	Missing `tplMsBundlesCartInfo` or plugin lacks `msOnGetCart`
Member qty clickable	JS not loaded, or `enhanceCartDisplay` not run after a manual re-render

Storefront REST

Base: /api/v1/msbundles via the miniShop3 router.

text

/assets/components/minishop3/api.php?route=/api/v1/msbundles/…

Requires a miniShop3 token (ms3_token cookie / TokenMiddleware). Stock msbundles.js calls these routes for you. Use the details below for a custom front end.

Router envelope:

json

{
  "success": true,
  "message": "",
  "data": {},
  "errors": [],
  "warnings": []
}

On error: HTTP 4xx, success: false, data: null.

GET `/bundle/calculate`

Recalculate price and stock (qty change on the card).

Query: id or bundle_id, quantity.

Example: …/api.php?route=/api/v1/msbundles/bundle/calculate&id=5&quantity=2

data: { "price": {…}, "stock": {…}, "quantity": N }

Besides numbers, price includes strings for the card:

Field	Description
`total_formatted`	Total with currency or “Free”
`original_total_formatted`	Original
`savings_formatted`	Savings
`price_html`	HTML for `[data-msbundles="price"]` on the card

POST `/bundle/add`

Add the bundle to the cart. Qty limit: msbundles_max_bundle_quantity.

Body (JSON):

json

{
  "id": 5,
  "quantity": 2
}

ID alias: bundle_id.

data on success:

json

{
  "bundle_hash": "a1b2c3…",
  "quantity": 2
}

Optional lines with zero stock may appear in response warnings. The rest of the bundle still adds.

POST `/bundle/remove`

Remove every row with the given bundle_hash.

Body (JSON):

json

{
  "bundle_hash": "a1b2c3…"
}

Alias: hash.

data on success:

json

{
  "removed_count": 3,
  "bundle_hash": "a1b2c3…"
}

GET `/bundle/get`

Bundle card with price and stock (no cart write).

Query: id or bundle_id, optional quantity (default 1).

data: { "bundle": {…}, "price": {…}, "stock": {…}, "quantity": N }

handyShop

Utilities

Settings

Utilities

Events

Backend API
